The world-famous CamMate Travel Series is a more economical version that consists of four-foot sections packed in durable hard cases for frequent location traveling. In addition to our strong aerospace design, the Travel series features 15 minute set up times; configuration changes in 10 minutes and electronic head inversions in less than 30 seconds. All of these design features make your job on location faster and easier.
T 11 CamMate Travel Series

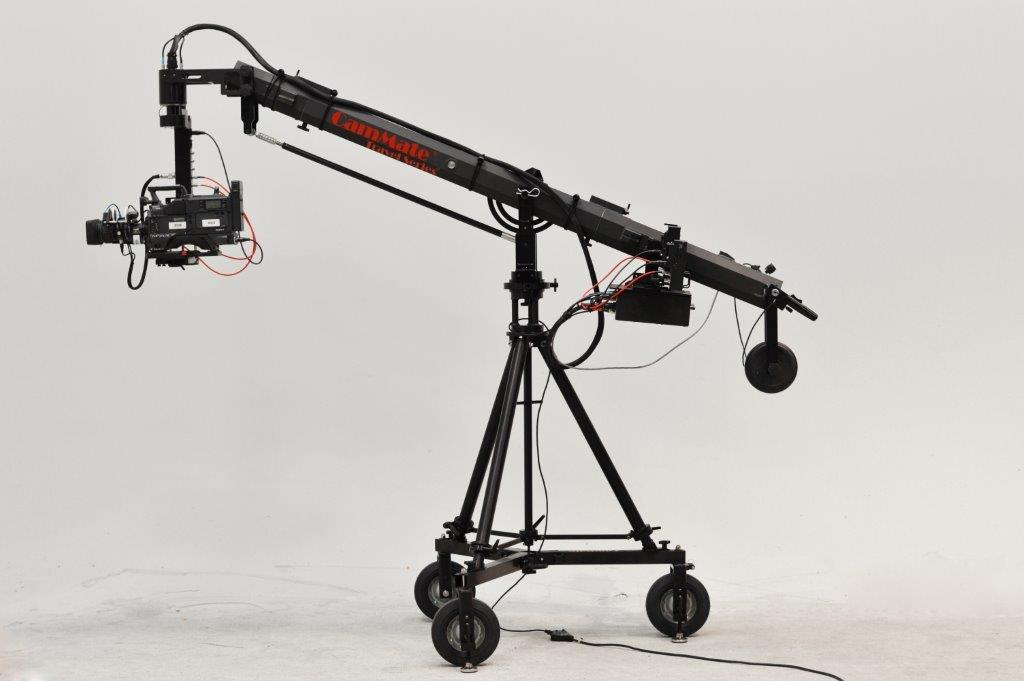

Shown with CamMate Tripod and Wheels
| Lens Height: | 11ft – 3.35m |
| Reach: | 5ft – 1.52m |
| Total Length: | 8’5″ – 2.57m |
| Ballast Needed: | 9 lbs. – 4.08 kilos |
| Weight of Crane: | 53 lbs – 24.04 kilos |

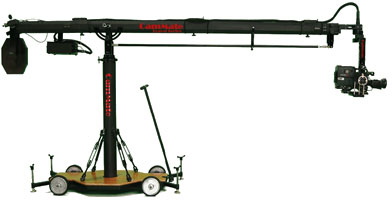

T 15 CamMate Travel Series
| Lens Height: | 15ft – 4.57m |
| Reach: | 9ft – 2.74m |
| Total Length: | 12’5″ – 3.78m |
| Ballast Needed: | 61 lbs. – 27.67 kilos |
| Weight of Crane: | 67 lbs – 30.39 kilos |

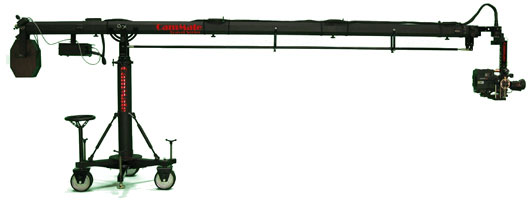

T 18 CamMate Travel Series
Shown with CamMate Crab Dolly with optional Support Pack
| Lens Height: |
18ft – 5.49m |
| Reach: | 13ft – 3.96m |
| Total Length: | 16’5″ – 5.00m |
| Ballast Needed: | 132 lbs. – 59.87 kilos |
| Weight of Crane: | 82 lbs – 37.19 kilos |

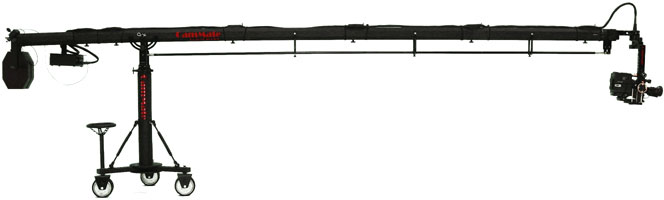

T 21 CamMate Travel Series
Shown with CamMate Crab Dolly
| Lens Height: |
21ft – 6.40m |
| Reach: | 17.5ft – 5.31m |
| Total Length: | 21’5″ – 6.53m |
| Ballast Needed: | 219 lbs. – 99.34 kilos |
| Weight of Crane: | 100 lbs – 45.36 kilos |

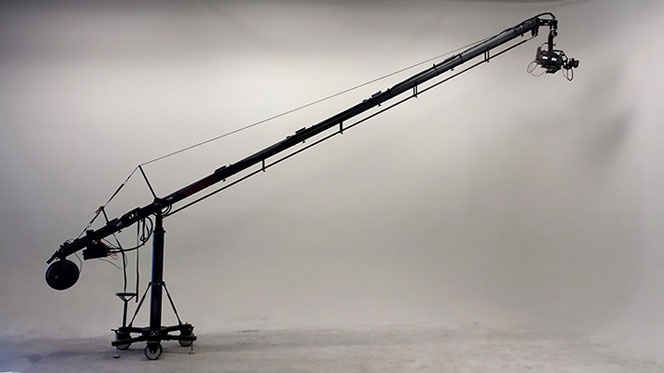

T 25 CamMate Travel Series
Shown with Crab Dolly
| Lens Height: |
25ft – 7.62m |
| Reach: | 21ft – 6.40m |
| Total Length: | 25’5″ – 7.75m |
| Ballast Needed: | 247 lbs. – 112.04 kilos |
| Weight of Crane: | 126 lbs – 57.15 kilos |
*** The Travel Series Cranes were mounted on a Crab Dolly with a short tube for all listed measurements.
