CamMate’s world famous 2000 Series is for applications requiring extended camera height and reach. The NEW CamMate 2000 Series will provide quality, precision moves, and control, allowing you to reach new heights.
Constructed with our high strength 6 foot extensions, the CamMate 2000 Series gives you more combinations with greater weight limits. The 2000 Series is available in lengths of 12 feet (3.65 meters) up to 50 feet (15.2 meters). With all the same electronics features as our famous Travel Series, combined with a much greater camera reach, the CamMate 2000 series can’t be beat!
2012 CamMate 2000 Series
| Lens Height: |
13′ 5″ – 4.09m |
| Reach: | 7′ 3″ – 2.21m |
| Total Length: | 12′ 4″ – 3.76m |
| Ballast Needed: | 41 lbs. – 18.60 kilos |
| Weight of Crane: | 84 lbs. – 38.10 kilos |
2018 CamMate 2000 Series
| Lens Height: |
18′ 9″ – 5.72m |
| Reach: | 13′ – 4.17m |
| Total Length: | 18′ 9″ – 5.72m |
| Ballast Needed: | 128 lbs. – 58.06 kilos |
| Weight of Crane: | 114.25 lbs. – 51.82 kilos |

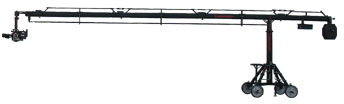

2024 CamMate 2000 Series
| Lens Height: |
24′ 1″ – 7.34m |
| Reach: | 20′ 1″ – 6.12m |
| Total Length: | 25′ 2″ – 7.67m |
| Ballast Needed: | 326 lbs. – 147.87 kilos |
| Weight of Crane: | 144.5 lbs. – 65.54 kilos |
2032 CamMate 2000 Series
* Side Cable Assist Required (not shown)
| Lens Height: |
29′ 5″ – 8.97m |
| Reach: | 26′ 6″ – 8.08m |
| Total Length: | 31′ 7″ – 9.63m |
| Ballast Needed: | 534 lbs. – 242.22 kilos |
| Weight of Crane: | 202 lbs. – 91.62 kilos |

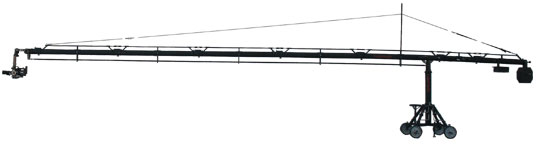

2039 CamMate 2000 Series
* Side Cable Assist (not shown) and Overhead Cable Assist Required
| Lens Height: |
34′ 9″ – 10.59m |
| Reach: | 32′ 11″ – 10.03m |
| Total Length: | 41′ – 12.50m |
| Ballast Needed: | 465 lbs. – 210.92 kilos |
| Weight of Crane: | 262 lbs. – 118.84 kilos |
2043 CamMate 2000 Series
*Two Side Cable Assist (not shown) and Two Overhead Cable Assist Required
| Lens Height: |
40′ 1″ – 12.22m |
| Reach: | 39′ 4″ – 11.99m |
| Total Length: | 47′ 5″ – 14.45m |
| Ballast Needed: | 681 lbs. – 308.90 kilos |
| Weight of Crane: | 311 lbs. – 141.41 kilos |

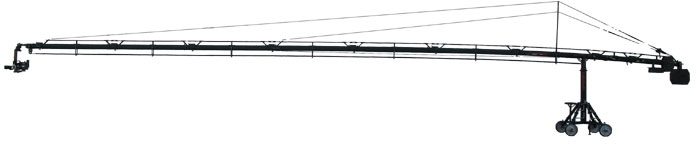

2050 CamMate 2000 Series
* Two Side Cable Assist (not shown) and Two Overhead Cable Assist Required
| Lens Height: |
45′ 5″ – 13.84m |
| Reach: | 45′ 9″ – 13.94m |
| Total Length: | 53′ 10″ – 16.41m |
| Ballast Needed: | 905 lbs. – 410.50 kilos |
| Weight of Crane: | 358.25 lbs. – 162.5 kilos |

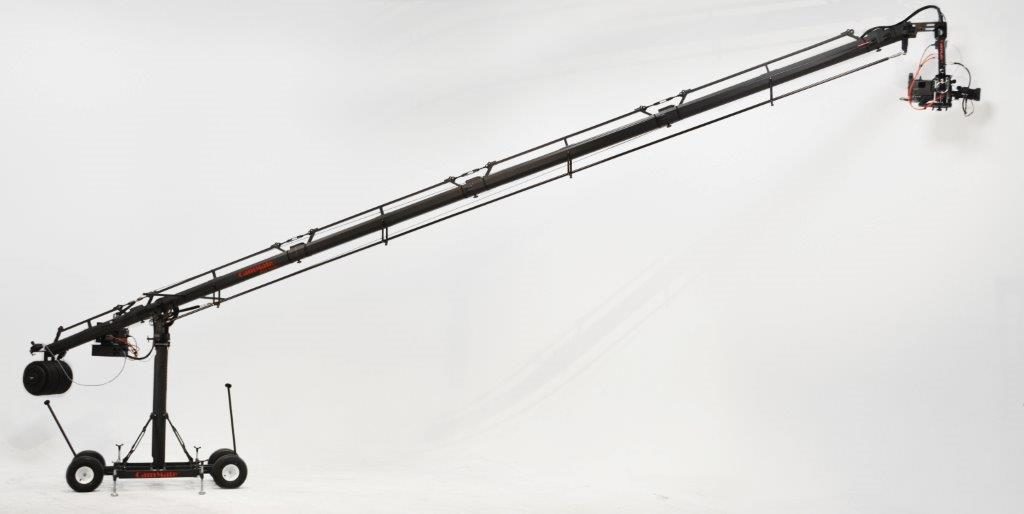

***The CamMate 2000 Series Cranes were mounted on a Roamer Dolly with Studio Wheels and a tall tube (4′) for all approximate measurements.
